2.500,00

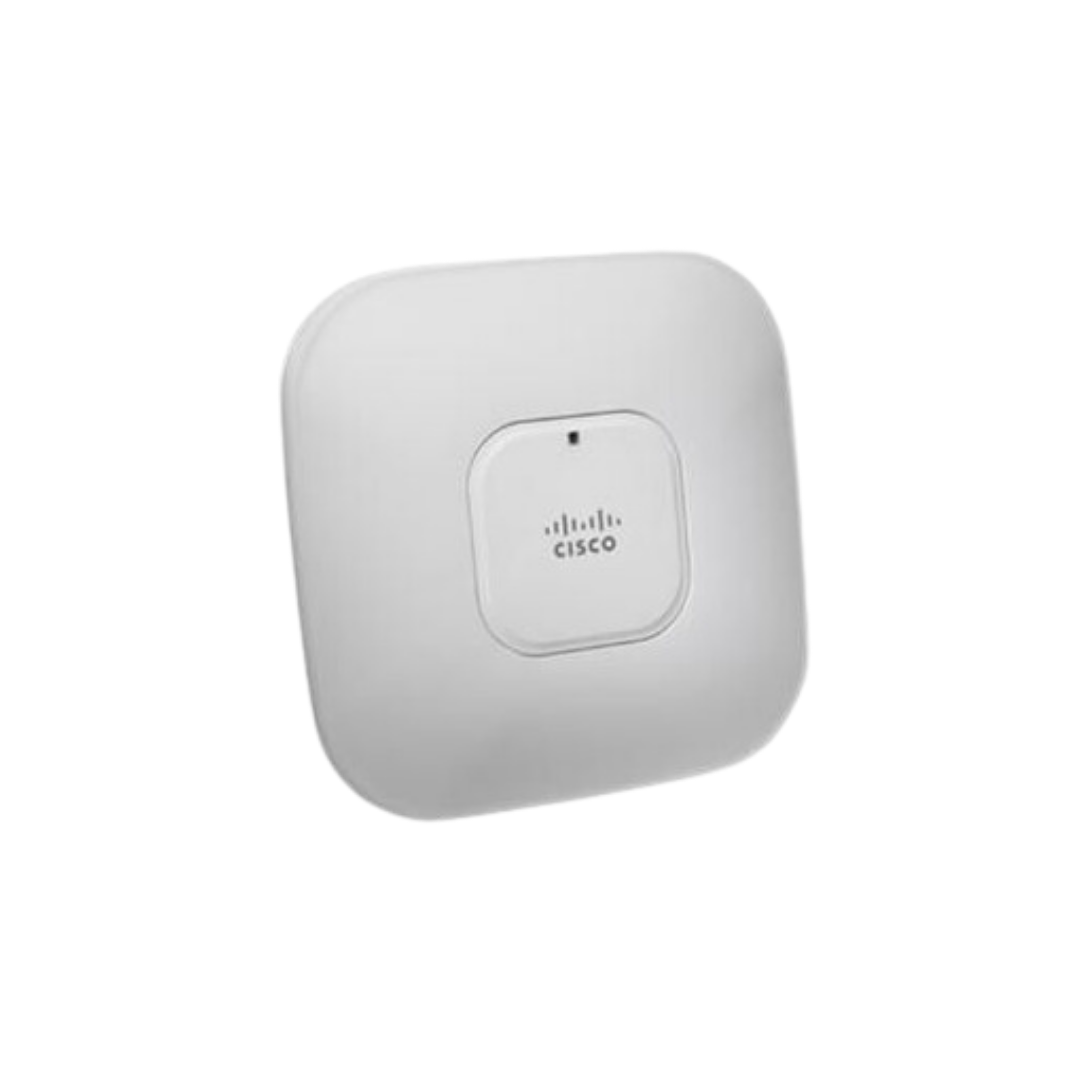

Cisco AIR-CAP2602I-E-K9 Access Point

AIR-CAP2602I-E-K9 Specification

Product Description Cisco Aironet 2600 Series Access Points with Internal antennas
Devide Type standalone Wireless  Access point
Regulatory domain E regulatory domain
Software Cisco Unified Wireless Network Software Release 7.2.110 or later.
Data rates supported ● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps
● 802.11n on 2.4 GHz: up to 450Mbps
Maximum number of nonoverlapping channels 5 GHz
● 802.11a:
◦ 20 MHz: 21
● 802.11n:
◦ 20 MHz: 21
◦ 40 MHz: 9
2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
External antenna (antenna purchase separately) ● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry’s broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios
Interfaces ● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
System memory ● 256 MB DRAM ● 32 MB flash
Power consumption ( power supply pruchase separately) 15.4 Watts (standard 802.3af POE)
IEEE standards ● IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security  ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X
● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Frequency band and 20-MHz operating channels A (A regulatory domain):
●  2.412 to 2.462 GHz; 11 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
●  5.745 to 5.825 GHz; 5 channels
C (C regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.745 to 5.825 GHz; 5 channels
D (D regulatory domain):
●  2.412 to 2.462 GHz; 11 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
H (H regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.150 to 5.350 GHz; 8 channels
●  5.745 to 5.825 GHz; 5 channels
I (I regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.500 to 5.620 GHz; 7 channels
●  5.745 to 5.805 GHz; 4 channels
N (N regulatory domain):
●  2.412 to 2.462 GHz; 11 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.660 to 5,805 GHz; 7 channels
S (S regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.500 to 5.700 GHz;, 11 channels
●  5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):
●  2.412 to 2.462 GHz; 11 channels
●  5.280 to 5.320 GHz; 3 channels
●  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
●  5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain):
●  2.412 to 2.462 GHz; 11 channels
●  5.180 to 5.320 GHz; 8 channels
●  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
●  5.745 to 5.825 GHz; 5 channels
Environmental ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
● Nonoperating (storage) Altitude Test: 25˚C, 15,000 ft.
● Operating temperature: -4 to 131°F (-20 to 55°C)
● Operating humidity: 10 to 90 % (noncondensing)
● Operating Altitude Test: 40˚C, 9843 ft.
